XAML

When I talk to developers about WPF, inevitably questions about XAML comes up. How can we avoid looking at the XAML? Are the designers ready yet? To me, those are the wrong questions. A better question is: should we avoid working directly in XAML? I want to give my answer to that question in this post.

Firstly, it's important to realize that WPF and XAML are not one and the same. XAML is just a convenient format for defining a user interface. At the end of the day, it's just a dialect of XML that can encode a hierarchy of CLR objects. There's no reason those CLR objects have to be WPF types.

This confusion probably stems from the fact that XAML is shipped with WPF, and the XAML support classes like XamlReader and XamlWriter are contained inside a WPF assembly (PresentationFramework.dll). I think this is unfortunate, but it does not mean that use of XAML implies a WPF interface (or any interface at all).

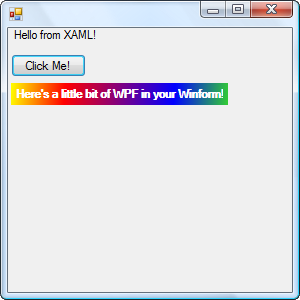

To demonstrate this, I put together the project linked at the bottom of this post, which shows XAML being used to encode a simple Windows Forms user interface:


It's important to realise that while XAML isn't WPF-specific, WPF does make efforts to ensure that it provides a good XAML experience. For example, all WPF types that you might want to create within XAML have default constructors. And the [ContentPropertyAttribute] has been applied where relevant. WPF also provides a number of XAML markup extensions to integrate with WPF's data binding and resource system, among other things.

Just as you can use XAML outside of WPF, you can also do WPF without XAML. There's no reason you can't construct and wire together your user interface widgets yourself, or perhaps use some other third party designer that writes the code for you. You could even invent your own format for encoding the control tree. At the end of the day, you just need to end up with a tree of controls at runtime - XAML is one way to define that tree. But is it a good way?

To my mind, there are two kinds of XAML: I'll call them functional and aesthetic. Functional XAML is the basic layout of your UI and any supporting bindings / business logic. Aesthetic XAML consists of styles and templates, which are used to give your UI a look and feel. Functional XAML is what you, as a developer, want to be working with. The aesthetic XAML is best left to designers and UX guys, which counts out most developers.

But here's the thing: the two types of XAML can be separated. Developers can work directly in the minimalist, functional XAML and leave the verbose, aesthetic XAML to the designers. Designers can use Expression tools to maintain the aesthetic XAML.

This debunks one of the biggest complaints about XAML: "it's too verbose". Sure, it's verbose if you try and lump everything into the same file, but if you separate concerns you will end up with the digestible, functional XAML in one file and the verbose, tool-able aesthetic XAML in others.

It also goes to show just how soluble functional XAML can be once you prune out the aesthetic XAML. I'd wager that even non-developers could understand the general gist of this XAML:

<Window x:Class="MyApplication.LoginWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <Label>User Name:</Label>
        <TextBox Grid.Column="1" Text="{Binding UserName}"/>

        <Label Grid.Row="1">Password:</Label>
        <PasswordBox Grid.Row="1" Grid.Column="1" x:Name="_passwordBox"/>

        <StackPanel Grid.Row="2" Grid.ColumnSpan="2" Orientation="Horizontal">
            <Button>_OK</Button>
            <Button>_Cancel</Button>
        </StackPanel>
    </Grid>
</Window>

To me, this is very readable, and web developers would find the declarative syntax familiar. The indentation makes the hierarchical relationships between controls obvious, and the well-named WPF types make the contents of the tree obvious. However, in the above example, the use of the very generic Grid panel introduces a certain amount of noise. Fear not, because that could be eliminated with a custom control:

<Window x:Class="MyApplication.LoginWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <FieldValuePanel>
        <Label>User Name:</Label>
        <TextBox Text="{Binding UserName}"/>

        <Label>Password:</Label>
        <PasswordBox x:Name="_passwordBox"/>

        <StackPanel Orientation="Horizontal" FieldValuePanel.Stretch="True">
            <Button>_OK</Button>
            <Button>_Cancel</Button>
        </StackPanel>
    </FieldValuePanel>
</Window>

That's even cleaner, and we could go even further if we wanted to.

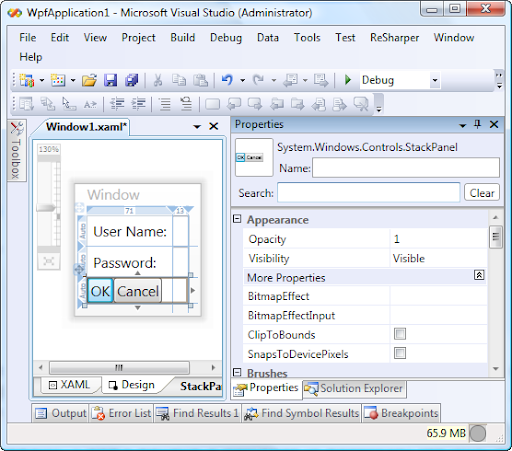

Suppose we'd like to right-align the StackPanel. Would you rather insert a simple HorizontalAlignment="Right" in the XAML, or try and do it in the designer:


I know what I'd prefer, especially when the designer can end up doing all sorts of nasty things to your XAML:

        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" MinHeight="26.146" />
            <RowDefinition Height="Auto" MinHeight="26.146" />
            <RowDefinition Height="Auto" MinHeight="22.301" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="51.523*"/>
            <ColumnDefinition Width="19.847*" />
            <ColumnDefinition Width="13.073*"/>
        </Grid.ColumnDefinitions>

        <Label Height="17.687" VerticalAlignment="Top">User Name:</Label>

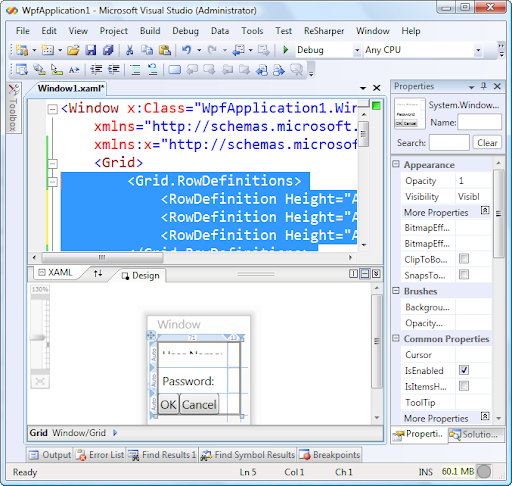

One of the benefits to the designer is that it gives you a preview of your visual tree. That is certainly useful at times, but it doesn't mean you have to use the designer to do editing. You could just split the screen between XAML and designer:


Or you could use a tool like Kaxaml.

So, back to the question: should we avoid working directly in XAML? I think developers should be embracing XAML, and rejoicing in the fact that we no longer have to wrestle with designers. With some good techniques like separation of concerns, XAML becomes very soluble and a boon to productivity.
